Profile |

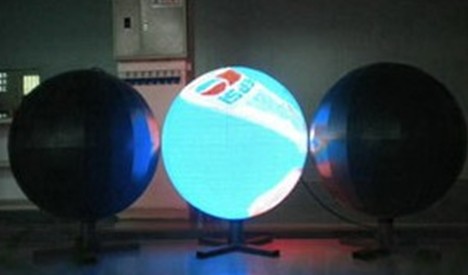

Shaped LED full color display
Full Color LED ball viewing angle of 360 degrees, three-dimensional play clear video, there is no perspective of the flat-screen LED display, LED ball is a new LED curved screen designed specifically for the rental industry, to overcome the LED arcthe screen is not moving defects, carry forward the advantages of LED curved screen perspective. According to different venues, different sets, free to adjust the position of the LED ball. Because its good display effects and light show, we 1000mmLED the ball since its inception, was welcomed by customers at home and abroad, are also frequently become a major highlight on the LED display at home and abroad show.
360-degree viewing angle in all directions to play video, graphic LED display perspective,
LED ball for aluminum structural design, light weight, rugged construction, installation of LED ball according to customer requirements, designed for moving, lifting, installed,
LED ball diameter can be customized design, production, spherical fully completed by the CNC, precise module size, to ensure the consistency of the LED ball a whole circle of curvature,
The diameter of the 1000mmLED ball 10M, weighs only 2780Kgs designed for the mobile arena surface design, is one of the highlights of the rental industry. LED ball can be synchronous or asynchronous control to display full-color video,
Good thermal structural design, LED ball for a long time in good working condition.
LED ball production is very difficult, first of all, we must ensure that the LED ball the whole round curvature, which means that the LED sphere module installation to be very precise, signal, power supply layout is very reasonable, screws, mask size very precise and so. LED ball to finalize a sealed dome, if you do not have good thermal structural design, it is difficult to ensure that the LED ball for a long time in good working condition.
|
|
|
项目
|
10mm LED球
|
|
点间距
|
10mm
|
|
发光点配置
|
3-in-1 SMD(3528)
|
|
物理密度
|
10000 像素 /m²
|
|
亮度
|
≥2000cd/ m²
|
|
扫描方式
|
1/4 扫描
|
|
灰度等级
|
≥12 bit
|
|
刷新频率
|
≥600HZ
|
|
可视角度
|
水平≥120º
|
|
垂直≥120º
|
|
球直径
|
1000mm
|
|
箱体重量
|
70Kg
|
|
最大功耗
|
2000W/PC
|
|
平均功耗
|
1000 W/PC
|
|
工作温度
|
-30ºC～60ºC
|
|
使用寿命
|
≥50000h
|
|
电源输入
|
90V-260V 50-60Hz
|
|
IP等级
|
IP40
|
|
|
